Is Carbon Fiberglass Cloth Better Than Standard Fiberglass for Composite Buyers?

Carbon fiberglass cloth is a term buyers often see when they compare carbon fiber cloth, fiberglass cloth, or carbon-glass hybrid fabric for composite reinforcement. If you source technical textiles through the Materials category, do not judge by the name only. Check the fiber type, weave, GSM, resin system, test data, packing, and how the fabric will be used in the workshop.

This guide looks at the term as a buying question, not as one fixed global standard. In daily sourcing, one supplier may use it for a hybrid woven cloth, while another may use it loosely when comparing carbon cloth with fiberglass cloth. That wording gap can lead to order trouble, especially when the final part needs stiffness, low weight, heat resistance, or a clean laminate surface.

Is Carbon Fiberglass Cloth Really One Material?

Before comparing prices, first confirm what the product is. The roll label, sample swatch, and technical data sheet should give the same information. If they do not match, ask the supplier to confirm in writing. The right fabric can save weight and labor, but the wrong fabric may take too much resin, leave dry spots, or crack during bending.

Carbon Fiber Cloth Carries Stiffness With Low Weight

Carbon fiber cloth uses carbon tows woven into plain, twill, satin, or other structures. Buyers usually choose it when they need stiffness, low weight, and a neat technical surface. In a thin panel, carbon may be more than some basic parts need, but that stiffness is the reason it is used in aerospace, automotive, drone, and sporting goods projects.

Fiberglass Cloth Gives Value and Easier Handling

Fiberglass cloth is the common workhorse in many composite shops. It usually costs less, wets out well with common resin systems, and handles impact in a more forgiving way. Buyers use it for boat repair, panels, insulation covers, molds, tanks, and many general FRP parts. It is heavier than carbon fiber, but the cost and handling are often hard to beat.

Hybrid Cloth Blends the Two Fiber Behaviors

A true hybrid carbon fiberglass cloth puts carbon and glass fibers into one fabric. The aim is balance: some carbon stiffness, some glass toughness, and often a lower cost than full carbon. The final behavior still depends on fiber ratio, weave pattern, yarn size, resin, and laminate schedule. A carbon look on the surface is not enough proof.

How Do Carbon and Fiberglass Cloth Compare in Real Numbers?

Material numbers help remove vague claims from the discussion. They do not replace laminate testing, but they make the first screening easier. The figures below are public reference points, not guaranteed values for every finished cloth roll.

Carbon Fiber Brings Higher Specific Stiffness

Toray Composite Materials America data, accessed July 2026, lists T300 carbon fiber at 3,530 MPa tensile strength, 230 GPa tensile modulus, and 1.76 g/cm3 density. The same supplier lists T700S at 4,900 MPa tensile strength, 230 GPa modulus, and 1.80 g/cm3 density. For a buyer, this means carbon fiber can give a strong stiffness-to-weight result when the laminate is designed and cured in the right way.

Fiberglass Brings More Forgiving Cost and Flex

An MDPI Materials review published in 2019 lists E-glass density at about 2.56 g/cm3 and tensile strength at 1.4 to 2.5 GPa. That is heavier and lower than many carbon grades, but glass fiber still brings useful strength, insulation behavior, corrosion resistance with the right resin, and simple workshop handling. For large covers or low-margin parts, those points matter in real production.

Hybrid Data Must Come From the Actual Laminate

There is no reliable public data that gives one universal strength, life span, or heat rating for generic carbon fiberglass cloth. A hybrid roll may perform very differently after wet lay-up, vacuum bagging, infusion, or prepreg curing. Ask for fabric data first, then test a cured coupon. A small panel can show resin starvation, print-through, edge fray, or unusual bending behavior before bulk money is committed.

Which Weave and Fabric Weight Should You Choose?

Weave and areal weight affect cutting, bending, wet-out, and final thickness. Two rolls may use the same fiber but behave like different products on a mold. This is the stage where a buyer should slow down a little, even if the sales photo looks fine.

Plain Weave Helps With Flat Stable Parts

Plain weave has a simple over-under structure. It holds shape well, so it suits flat panels, backing layers, reinforcement patches, and parts where fabric stability matters more than deep drape. It can also reduce shifting during hand lay-up, which helps less experienced workshops keep fiber direction under control.

Twill Weave Helps Curves and Visible Surfaces

Twill weave usually drapes better around curves and gives the familiar diagonal carbon look. It is common in visible carbon parts, covers, fairings, and molded shells. The trade-off is that it may shift more during cutting and handling. If the edge must stay clean, ask for a sample and cut it with the same blade used in production.

Areal Weight Sets Layer Count and Resin Demand

Hexcel public product information, accessed July 2026, lists woven carbon reinforcements in areal weights from 98 to 670 gsm. That range shows why GSM is not a small detail. Light fabric conforms better and builds thin skins. Heavy fabric builds thickness faster, but it can need more resin, more compaction care, and more work at corners.

Where Does This Fabric Make the Most Sense?

The best use is not always the most expensive use. Carbon, fiberglass, and hybrid cloth each have a place when the working condition fits. Start with the part requirement, then choose the fiber. Many buying mistakes happen when the material name comes first and the application comes second. See also: Applications.

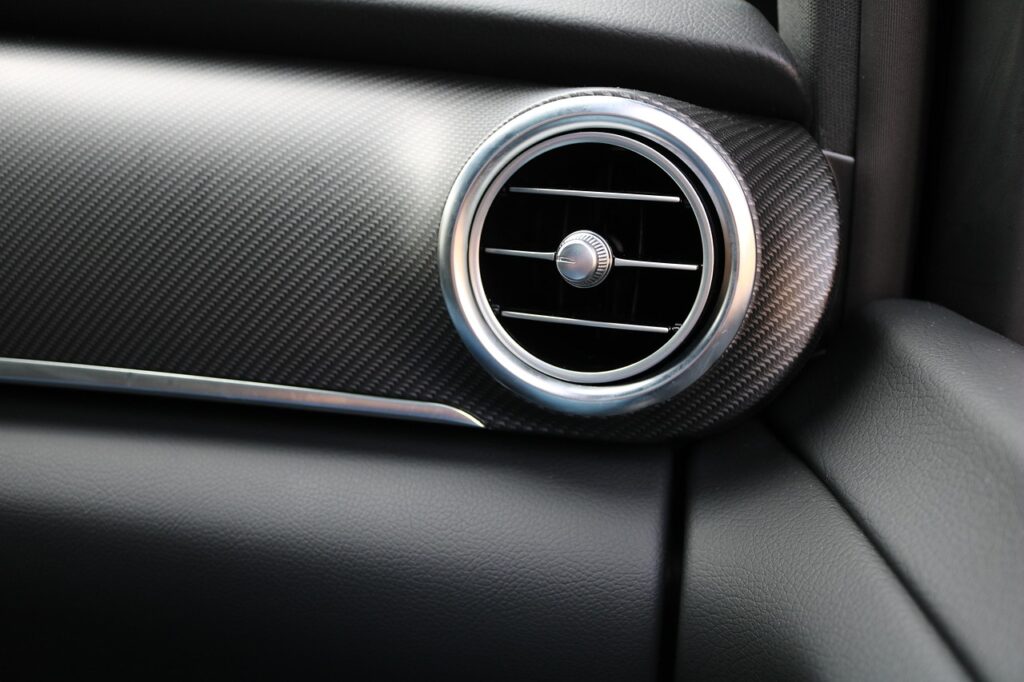

Composite Panels and Vehicle Parts

The U.S. Department of Energy lightweight materials page, accessed July 2026, states that replacing traditional materials with lightweight materials can reduce vehicle body and chassis weight by up to 50 percent, and advanced materials such as carbon fiber reinforced composites can reduce some component weights by 50 to 75 percent. This does not mean every panel needs carbon. It means weight saving has clear value when the part moves, flies, or affects energy use.

Industrial Covers, Shells, and Reinforcement Patches

Fiberglass or hybrid cloth can make sense in covers, equipment shells, repair patches, battery boxes, housings, and insulation-facing layers. Full carbon stiffness is not needed in every layer. A glass backing layer can control cost, add thickness, and improve handling, while a carbon face layer gives a stiffer outside skin. In many factories, that is a practical build-up.

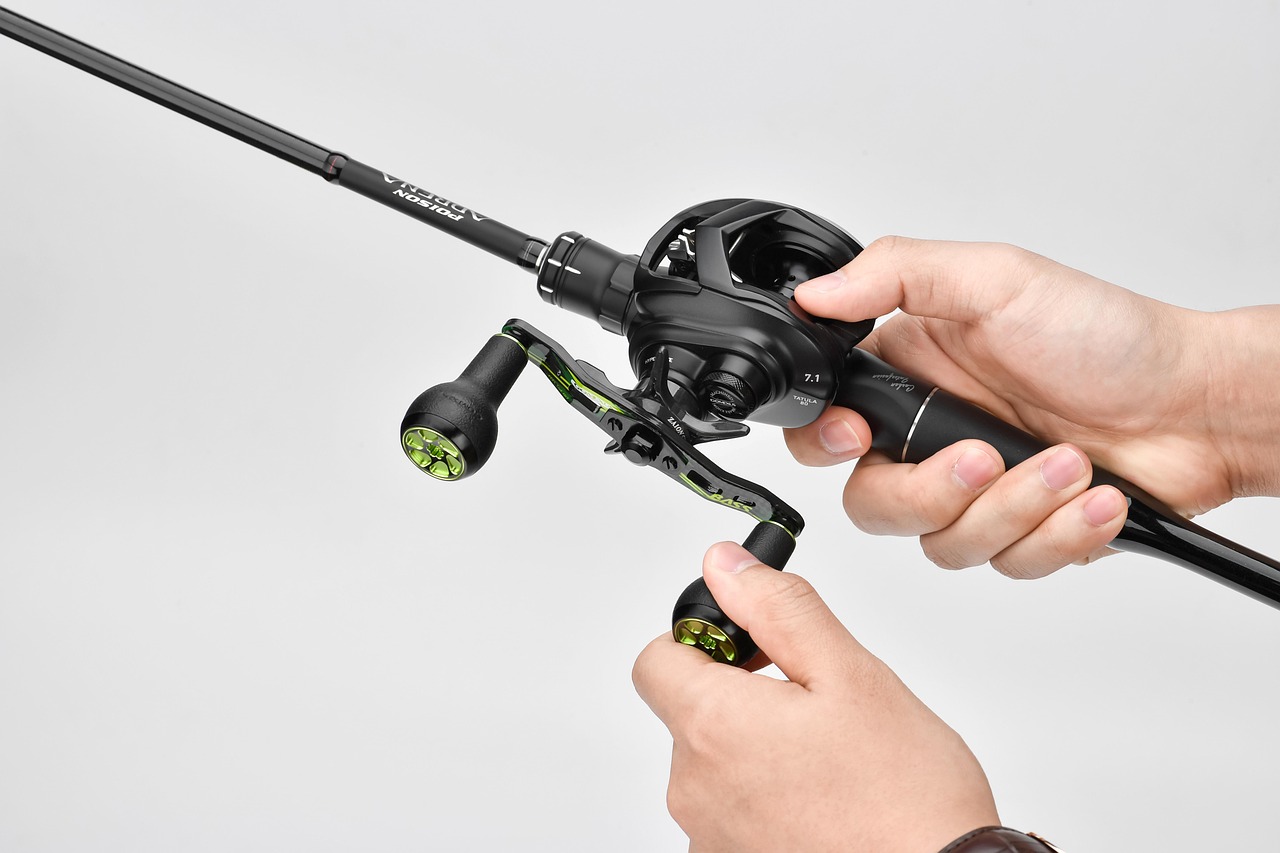

Sports, Marine, and Small Molded Goods

Paddles, boards, helmets, drone plates, tool handles, and trim parts often need a mix of low weight, feel, surface quality, and repairability. Marine buyers should also check resin choice, water exposure, UV protection, and impact needs. Carbon looks sharp, but a hidden fiberglass layer may be the part that keeps the product usable after a hard knock.

What Should You Check Before Placing a Bulk Order?

A quote for carbon fiberglass cloth should read like a technical agreement, not just a fabric name. If the supplier cannot define the construction, it is hard to compare the offer fairly. Keep the checklist short enough for daily purchasing, but clear enough to avoid costly surprises.

Fiber Type, Weave, and Roll Tolerance

Write down the exact fiber, tow size, weave, GSM, width, roll length, thickness, edge type, color, and tolerance. Add photos if the surface appearance matters. Ask whether the fabric is full carbon, full glass, or hybrid. Also check roll packing, because a telescoped roll on a pallet can stop cutting work before the first meter is used.

Resin Match, Wet-Out, and Test Coupons

Surface sizing must match the resin system, such as epoxy, polyester, vinyl ester, phenolic, or thermoplastic processing. ASTM D3039/D3039M-17(2025), accessed July 2026, is the standard test method for tensile properties of polymer matrix composite materials. ASTM D7264/D7264M covers flexural properties. These standards do not choose the fabric for you, but they give both buyer and supplier a common way to compare cured laminates.

Packing, Safety Notes, and Honest Lead Time

Ask for a data sheet, safety data sheet, sample roll, batch label, and packing photos. For fiberglass handling, gloves, sleeves, eye protection, and dust control are normal shop basics. For carbon fiber, conductive dust and sharp cut edges also need attention. Be direct about delivery dates as well, because a good sample has little value if bulk rolls arrive late or with loose cores.

• Confirm whether the cloth is carbon, fiberglass, or a true carbon-glass hybrid.
• Match weave and GSM to mold shape, target thickness, and resin process.
• Use supplier batch data and cured coupon tests before large orders.
• Check packing, edge fray, roll hardness, and storage needs before shipment.

FAQ

Q1: Is Carbon Fiberglass Cloth the Same as Carbon Fiber Cloth? A: Not always. Some sellers use the phrase loosely, while a true hybrid cloth combines carbon fiber and fiberglass in one fabric. Ask for the fiber composition before you buy.

Q2: Is Carbon Fiberglass Cloth Stronger Than Fiberglass Cloth? A: It can be stiffer and stronger in some laminate designs, but the result depends on fiber ratio, weave, resin, curing, and layer direction. Test a cured coupon for a serious part.

Q3: Which Resin Works Best With This Fabric? A: Epoxy is common for carbon and hybrid fabrics because it bonds well and gives good mechanical results. Polyester and vinyl ester may suit many fiberglass jobs. Always check sizing compatibility.

Q4: What GSM Should You Choose for a First Sample? A: For small panels or visible parts, many buyers start with a medium fabric because it balances drape and thickness. The right GSM still depends on mold shape, target weight, and layer count.

Q5: Can You Use Carbon Fiberglass Cloth for Heat Protection? A: Fiberglass handles heat better than many organic textiles, but carbon-glass hybrid cloth still needs the right resin or coating. Ask for finished-product heat data, not only bare fiber claims.
